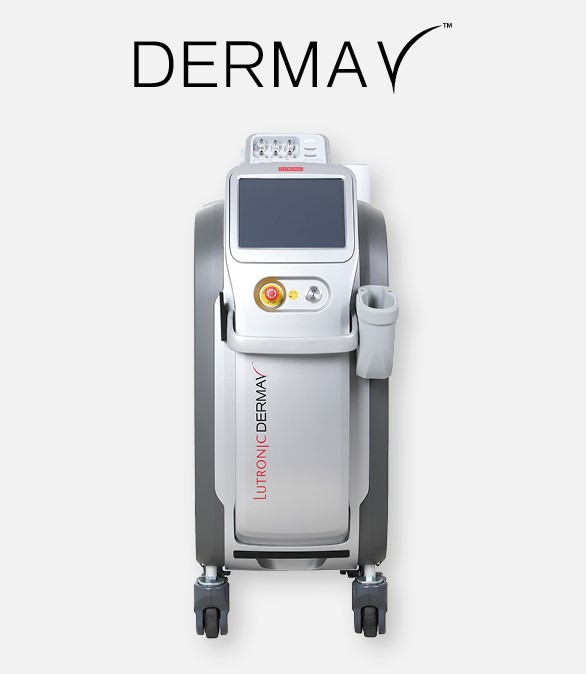

DermaV KTP Laser

DermaV™

First 532nm KTP & 1064nm Nd:YAG Laser
with Cryogen Cooling, Variable Sequential Pulsing Technology and Real-Time Temperature Sensing

IntelliTrak™

IntelliTrak is designed to precisely deliver energy pulses at a user-selected overlap density with repetition rates from up to 10Hz depending on chosen fluence and spot sizes > 5mm. Lutronic’s IntelliTrak distance gauge tips provide system feedback based on the user’s rolling speed to help ensure complete and consistent treatment area coverage. LED lighting on the console and handpiece help inform the user about optimal rolling speed for fast treatments. DermaV with IntelliTrak technology allows users to fully harness the high-powered platform to achieve faster treatment speeds without sacrificing the quality, consistency or fluence delivered during treatment.

IntelliTrak
Rapid, consistent coverage takes less time takes less time

Dermav Illustartion Gui Intellitrak

Dermav Intellitrak Illustration

Real-Time Temperature Sensing

The DermaV provides real-time Temperature Sensing which is easy and intuitive. The LED on the handpiece reflects the corresponding colors on the screen for easy viewing during treatment. A practitioner may decide to treat an area with a few passes until they reach the 1st or 2nd yellow bar, and then shift to a new area and see the skin temperature range drop
back to the 1st green bar. This additional real-time information can be a valuable tool to indicate safe endpoints.

Wirkungsweise Neu

The platform provides a full range of applications:

DermaV laser system is intended for use in the medical specialty of dermatology requiring selective photothermolysis of target chromophores in soft tissue.

The 532 nm wavelength is intended to be used by a trained physician as treatment of the following:

Benign vascular lesions, including Spider veins of the lower extremities
Benign cutaneous lesions, including Erythematous scars

The 1064 nm wavelength is intended to be used by a trained physician as treatment of the following:

Benign vascular lesions, including Port wine stains

ATTRIBUTES

Wavelength(s)	532 nm / 1064 nm (KTP / Nd:YAG)
Aiming beam	635 nm / ≤ 5 mW
Pulse Energy (Max Fluence)	532 nm mode : Max. 13.5 J 1064 nm mode : Max. 100 J
Pulse Width (ms)	532 nm mode : Max. 40 ms 1064 nm mode : Max. 60 ms
Pulse Rate (Hz)	0.5 – 10 Hz
Multi-Spots (12 sizes)*	2, 3, 5, 7, 8, 10, 12, 14, 16 mm Fractional (FRX) Ø10 mm, 3×10 mm
Emission Control	Finger Switch & Foot Switch
Cooling Type	Cryo ICD
Dimensions (mm)	417.6(W) x 950.3(L) x 1007.5(H)
Weight	124 kg
Electrical Rating	AC220-230 V, 50/60 Hz, Fuse: 250 V/30 A, Circuit Breaker: 30 A Power Consumption: 6.0 kVA

PASSION FOR Innovation

With special attention to the needs of users and patients, Lutronic invests a lot of time and money in the development of devices for the highest standard and continuous improvement. The products and services developed by us should not only meet, but exceed, your expectations and those of patients. For this reason, we developed our DermaV™ according to these four principles:
